Solar Bore Pump Package - Product Description

Harness the power of the sun to efficiently pump water from bores with our comprehensive 500W Solar Bore Pump Package. Designed for reliability and ease of use, this system is ideal for bores with depths ranging from 10m to 25m, delivering consistent water output year-round. With 6-8 hours of peak sunlight in winter and 8-10 hours in summer, this package ensures optimal performance for your water needs.

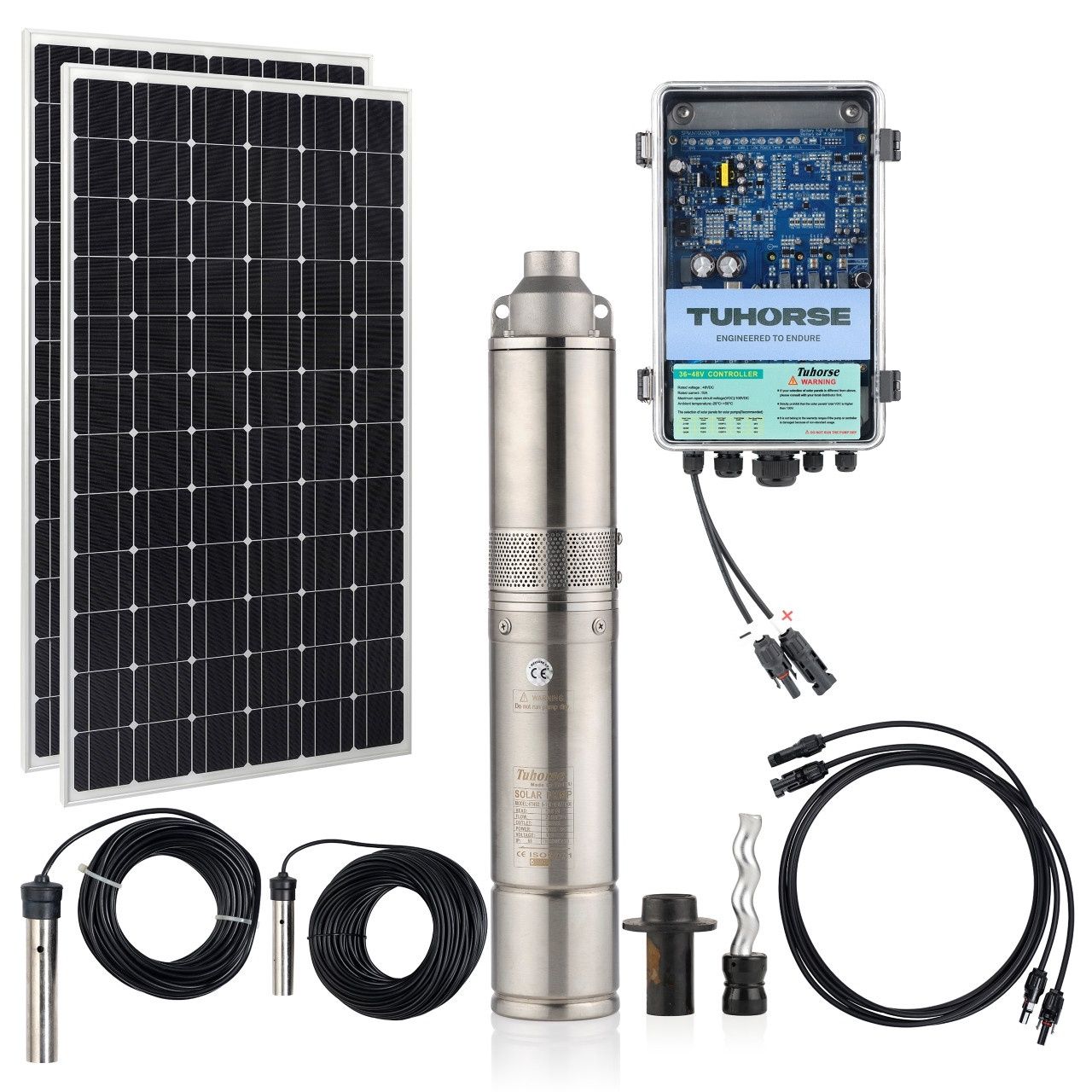

Package Includes:

• 2 x 200W Mono-Crystalline A-Grade Solar Panels: High-efficiency panels to power your pump.

• 4" 500W/48V Stainless Steel Solar Pump: Durable helical screw rotor pump with a 20m fitted power cable.

• Auto Control Box: Features water level control for bore and tank, adjustable motor speed, low power protection, MPPT (Maximum Power Point Tracking) system, and support for solar or 48V DC battery input (battery optional).

• One Spare Helical Screw Rotor: For easy maintenance and extended pump life.

• 2m MC4 Extension Cable: Connects solar panels to the control box.

• Water Sensors: 1 x 40m (for bore) and 1 x 10m (for water tank) to monitor water levels.

• User Manual: Detailed instructions for setup and operation.

• 24-Month Warranty: Covers pump and control box with back-to-base service in Sydney.



Items Not Included (Required for Installation):

• Stainless steel safety cable to secure the pump in the bore (for dam or river use, a float setup is required).

• Steel frames to mount and support solar panels.

• Poly pipe to connect the pump to the water tank.

Performance Specifications:

Solar Pump Specifications:

• Power: 500W / 48V DC

• Pump Type: Helical screw rotor

• Maximum Head: 80m

• Maximum Flow: 45L/min

• Outlet: 1"

• Weight: 14kg

• Dimensions: 100mm x 500mm

• Maximum Submerge Depth: < 30m

Auto Control Box Features:

• Water level monitoring for bore and tank via sensors.

• Adjustable motor speed for optimized performance.

• Low power protection to safeguard the system.

• MPPT system for maximum solar efficiency.

• Supports input power voltage up to 100V DC (solar panel open circuit max voltage).

• Optional 48V DC backup battery input.

This solar bore pump package is a sustainable, cost-effective solution for off-grid water pumping, perfect for agricultural, residential, or remote applications. Ensure reliable water supply with minimal maintenance and zero fuel costs.
